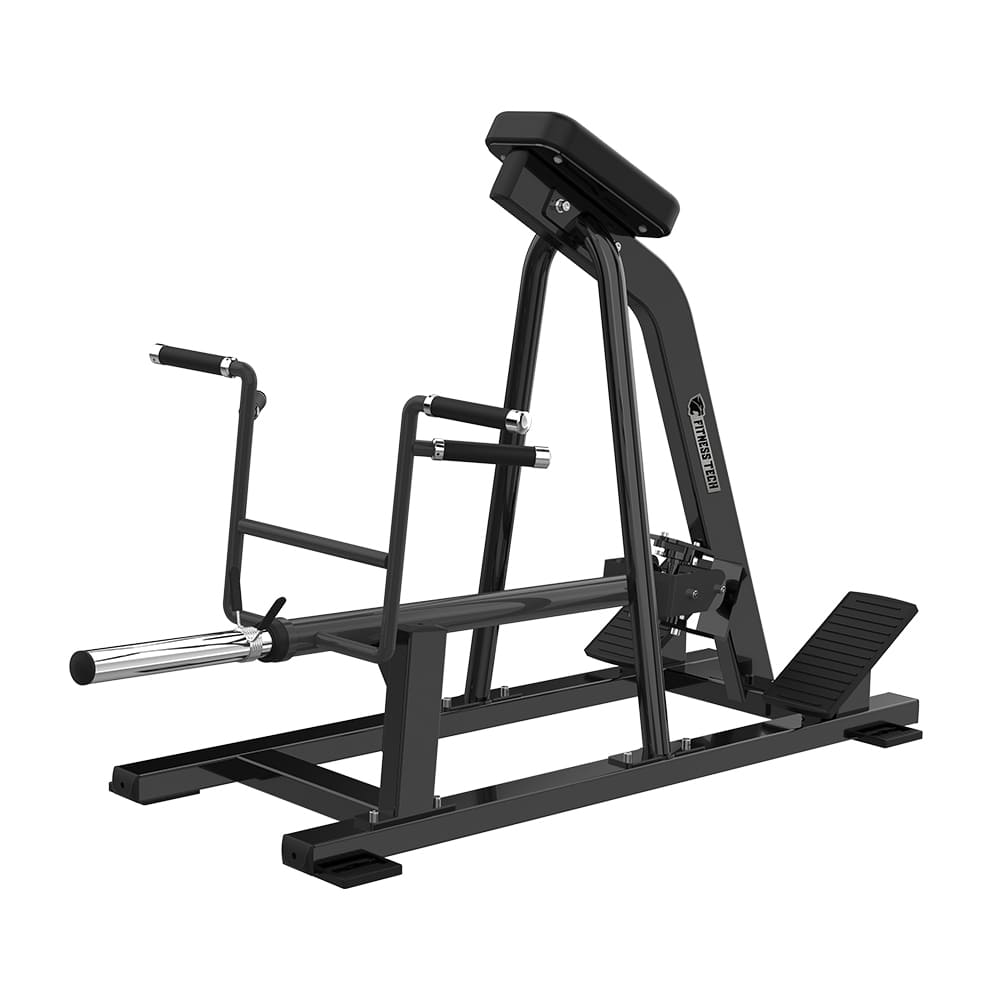

T-Bar Row | Plate Loaded machine - Compact Series

T-Bar Row | Lever Machine - Compact Series

The Fitness Tech Compact Series T-Bar Row Lever Machine is designed for targeted upper body training, allowing you to work your back with a guided, stable, and safe movement. Its plate-loaded system offers progressive resistance that adapts to both advanced users and sports centers seeking robust equipment for intensive use.

Thanks to its ergonomic design with chest support and foot platform, the user can maintain proper posture throughout the exercise, reducing lumbar strain and focusing the effort on the dorsal muscles. The steel frame and lever system provide stability, smooth movement, and durability during high-intensity workouts.

Chest support to isolate the back without loading the lumbar area

With the chest resting on the front support and feet fixed on the platform, the torso remains stabilized throughout the movement, which eliminates swinging and lumbar tension typical of free bar rowing. The effort is thus concentrated on the latissimus dorsi, involving the trapezius, rhomboids, posterior deltoids, and core muscles, while the lever system maintains constant tension throughout the range. All this on a 50 × 80 × 2.5 mm Q235 steel tube structure with anti-corrosion galvanized coating, built for intensive gym use.

Main Features

• T-Bar row lever machine: designed for targeted back muscle training.
• Plate load up to 150 kg: allows progressive resistance adjustment according to user level.
• Dual grip: enables varying hand positions to work the back with different grip widths.
• Ergonomic chest support: helps maintain stable posture and reduces lumbar load.
• Foot platform: provides stability and correct positioning during exercise execution.
• Galvanized Q235 steel frame: 50 × 80 × 2.5 mm tube with anti-corrosion treatment for maximum stability.
• Stainless steel loading sleeve: compatible with Ø50 mm Olympic plates.
• High-density padding: offers comfort and wear resistance for continuous use.

Technical Specifications

• Dimensions: 191 × 91 × 118 cm
• Weight: 82 kg
• Maximum plate load: 150 kg
• Maximum user weight: 180 kg
• Frame: Q235 steel with anti-corrosion galvanized coating
• Main tube: 50 × 80 × 2.5 mm
• Loading sleeve: 1 · stainless steel · Ø50 Olympic
• Grips: vulcanized rubber handles
• Upholstery: high-density foam with leather-like finish
• Finish: electrostatic powder coating
• Certifications: CE and EN ISO 20957
